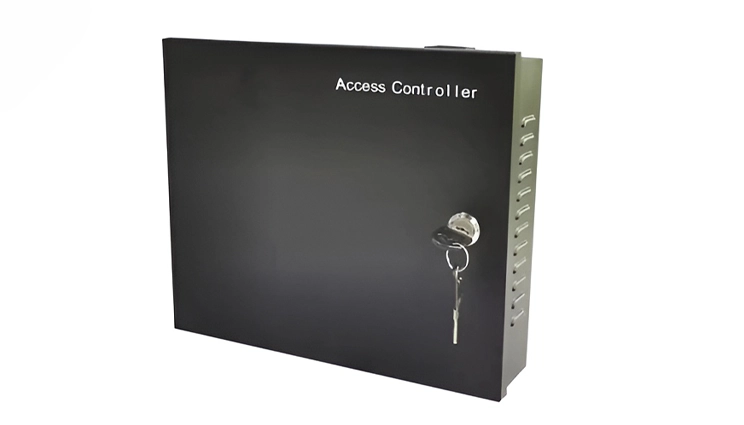

Multi Door Access Controller

Multi Door Access Controller

A Multi-Door Access Controller manages access to multiple doors from one unit, supporting RFID, PIN, or biometric authentication.

altimate

Multi Door Access Controller

A Multi-Door Access Controller manages access to multiple doors from one unit, supporting RFID, PIN, or biometric authentication. Ideal for offices, buildings, and campuses, it offers real-time monitoring, event logging, and enhanced security features like anti-passback and door interlock.

Specification

Technical Specification

Sr No Specification Products Details
01 User Capacity 10,000 users
02 Card Capacity 10,000 RFID cards
03 Log Storage 100,000 event records
04 Doors Supported 2 to 4 doors
05 Communication Interface TCP/IP, RS-485
06 Authentication Methods Card, PIN, Biometric (via readers)
07 Reader Support Wiegand 26/34 bit readers
08 Input Ports Door sensor, exit button, tamper switch
09 Output Ports Relay output for electric lock
10 Power Supply 12V DC / 3A (typical)

Features

Key Features

Centralized Access Control
Centralized Access Control
High Capacity
High Capacity
Real-Time Monitoring
Real-Time Monitoring
Multiple Auth Modes
Multiple Auth Modes
Enhanced Security
Enhanced Security

Faqs

Frequently Asked Question

Typically 2 to 4 doors, depending on the model (expandable in some cases).

RFID cards, PIN codes, and biometric devices via Wiegand interface.

Yes, it can store up to 100,000 access logs for audit and tracking.
